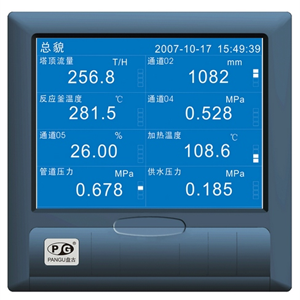

Pangu VX5300R is a  maximum 16 channel universal input blue screen paperless recorder,

it can input standard current, voltage, frequency standard, MV, thermocouple, thermal

resistance and other kinds of signal.

Features:

System

◆ Using the latest LSI, international famous factory components.

◆ High-speed, high-performance 32-bit ARM microprocessor, enabling simultaneous

16-channel  signal detection, recording, display and alarm.

◆ 5.6 inches 320x234 dot graphic LCD high-brightness, clear picture, wide viewing angles.

◆ All isolated universal input, you can enter a variety of signals, no jumper, configured

by software.

◆ New switching power supply, within the range of normal working 100VAC ~ 240VAC.

◆ Integrated hardware real-time clock, power-down situations clock can run accurately.

◆ Provide 24VDC transmitter isolation distribution.

◆ Aluminum sealed enclosure and internal shield to ensure the instrument is working

 properly in harsh environments.

◆ Large capacity FLASH memory chips to store historical data, power-down and never

 lost data.

◆ 12 relay alarm output.

Signal

◆ You can enter a variety of standard signal: standard current, standard voltage,

 frequency, millivolt, thermocouple, RTD.

◆ Signal full scale accuracy ± 0.2%.

◆ Standard 4-20mA transmitter output.

Software

◆ Software password lock to ensure safe user configuration.

◆ Chinese menu configuration can be freely configured and display engineering

digit number, engineering units.

◆ Quantities display range: -9999 to 30,000, also supports the degree of vacuum

 operation and scientific notation.

◆ Free to set upper and lower limits for each channel alarm, record and display

the most recent 256 alarms.

◆ Each channel supports flow accumulation function, offers a variety of classes

in the form of newspaper reports, daily, monthly, annual reports, etc.

◆ Curve horizontal curve selectable display mode or vertical curves.

◆ Built-GB2312 two Chinese characters (6500 characters).

◆ Powerful features T6 input method, easy to operate. Support Pinyin, digital,

English, special symbols, upper and lower standard character input, using

 international standard codes.

Communication

◆ Standard Ethernet interface: RJ45.

◆ Standard serial communication interface: RS232C and RS485.

◆ Support standard Modbus-RTU communication protocol that provides a variety

of data types, such as one hundred components, engineering, cumulative amount.

In addition to supporting the company's

DataManagement data management software, also supports iFix, configuration

king, MCGS, power control, and other general and specialized configuration software, .

◆ U disk data dump.

◆ Support the FAT32 file system, Windows can automatically identify the backup data

 files without format conversion.

◆ External micro-printer, you can manually print data, curves, regular automatic print

real-time data to meet the needs of the user on-site printing.
